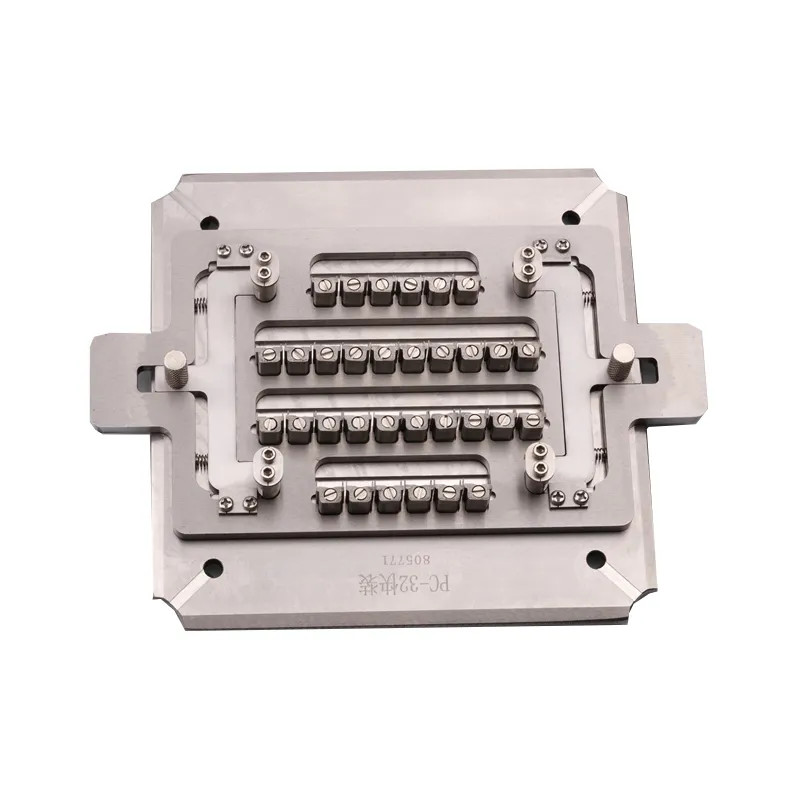

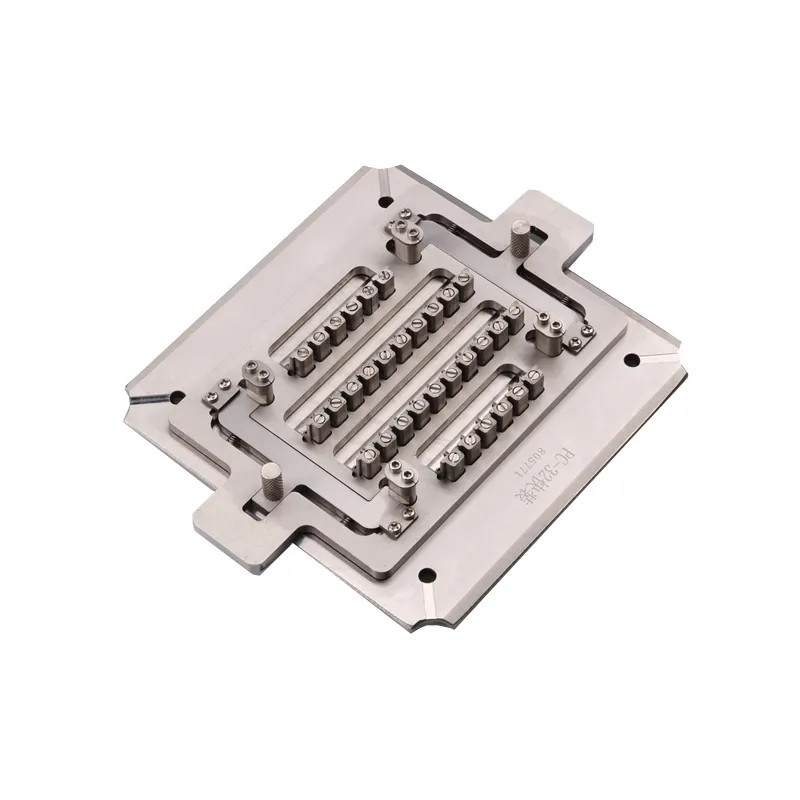

Fiber Polishing Fixture Fttx PC32 Port Optic Fiber Polishing Equipment
Model:FC/UPC-32F
Place of Origin:ShenZhen,China
Fiber Optic Patch Cord Polishing Holder Product Description:
The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
FC Polish Fixutre Feature:
1. The optical fiber polishing fixture is used in the quadrangle polishing machine to polish the FC/PC connector.
2. The optical fiber polishing fixture adopts independent pressurization mode to eliminate the effect of ring on polishing length.
3. Each fiber polishing fixture can accommodate up to 32 connectors. High production efficiency.
4. The plugs of the optical fiber polishing fixture can be interchanged, thus prolonging the service life of the optical fiber polishing fixture.
5. The optical fiber polishing fixture has the characteristics of good quality, high efficiency and high polishing efficiency. All kinds of optical fiber polishing fixtures can be customized according to customer requirements.
Optic Fiber FC Polishing Fixtures Application:
1. Connector: FC/PC.
3. Polishing 32 connectors a time.
4. Used for Square polishing machine.
4. ROHS compliant.
Optical Fiber FC Polishing Jig Specifications:
| Place of Origin | China |
| Brand Name | Chuanglixun |
| Model Number | FC-PC-32 |
| Type | Fiber Optic Polishing Fiture |
| No. of Fiber | 32 positions |
| Use | FTTH |
| Use | Fiber Optic FC UPC Patch Cord Production |
| Application | Hold and polish FC UPC connectors |
| Dimensions | 174mm*174mm*26mm |
| Feature | Wear-resistant, rust-proof and long service life |
| Advantage | Get high-quality polished end faces and 3D data |
| Type | Manufacturer, Trader |
| Weight | 1.5kg |
| Material | Hardened stainless steel |
| Package | Cushion Pads and carton case |
| MOQ | 1PCS |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
