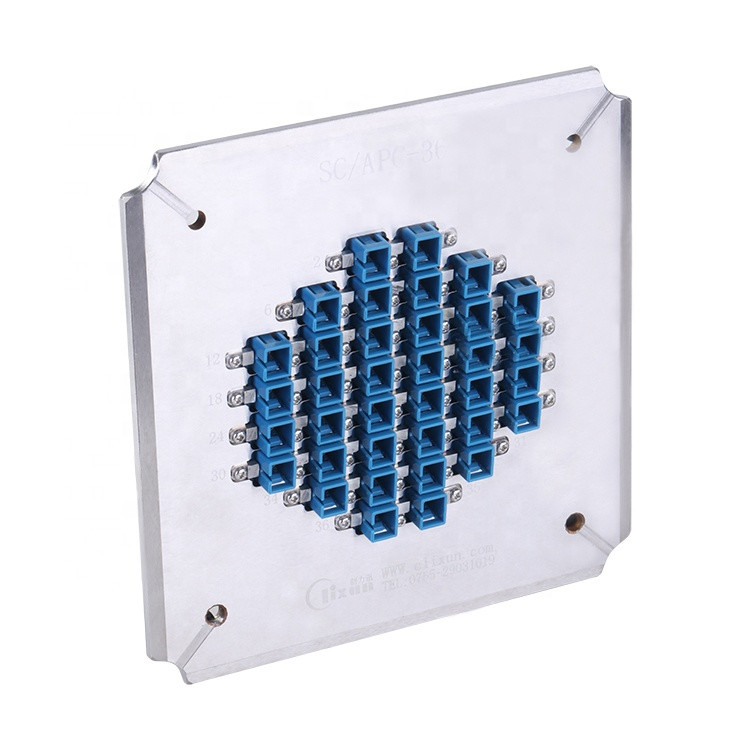

Fiber Optic 36 connector LC SC ST FC PC APC Polishing Holder Polishing jig fixtures for fiber patch cord
Model:SC/APC-36
Place of Origin:ShenZhen,China
Product description
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
Feature
1. Designed for polishing manner with planet tray
2.Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher
3.Dual APC &UPC polishing and Accommodating most styles of connectors
4.High efficiency to deal with all kinds of connectors. The maximum polishing quantity for MU and LC connectors is 48 pcs; And maximum polishing quantity for SC, FC and ST connectors is 36 pcs
5.The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability
6. Quick to change jigs, Easy and flexible to operate.
Specifications:
| 1.Machine Size | 174*174*26mm |
| 2.Net Weight | 1.3kg |
| 3.Max capactiy | 36 connectors a time |
| 4.Application | SC/APC connector polishing |
| 5.Suitable Machine | CLX-02E and SEIKOH GIKEN SFP-550 Serials |
| 6.Materials | harden stainless steel S136 |
Applications
1.Polishing SC conncetor for fiber optic patchcords manufacturing
2.SC/APC connector polishing for fiber optic pigtail
FAQ
1.Are you a factory or a trader?
......we are factory.
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5.How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
Product Tags:
|
|

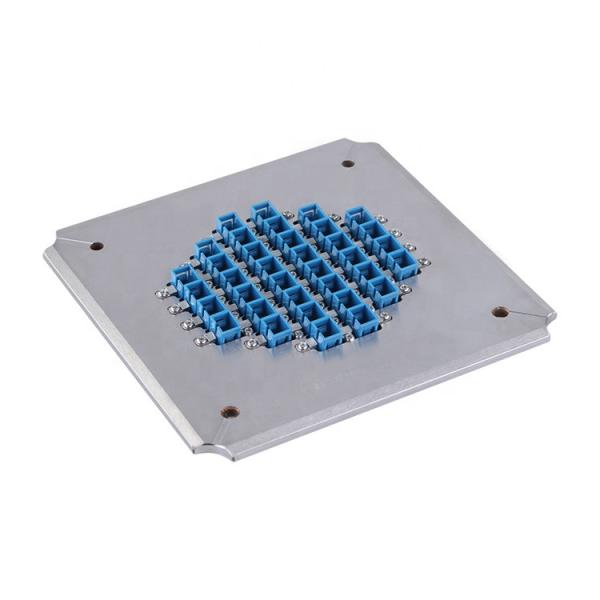

SC APC Connector Polishing Fixture Images
|
