HFBR-4516Z Duplex Latching connector & 4506Z Plastic connector polishing fixture
Model: HFBR-4516Z/4506Z
Place of Origin:ShenZhen,China
Plastic connector polishing fixture
Product Descriptions
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of HFBR-4501Z /HFBR 4511Z /HFBR-4503Z / 4506z / 4516z, etc, and also according to the customer request.

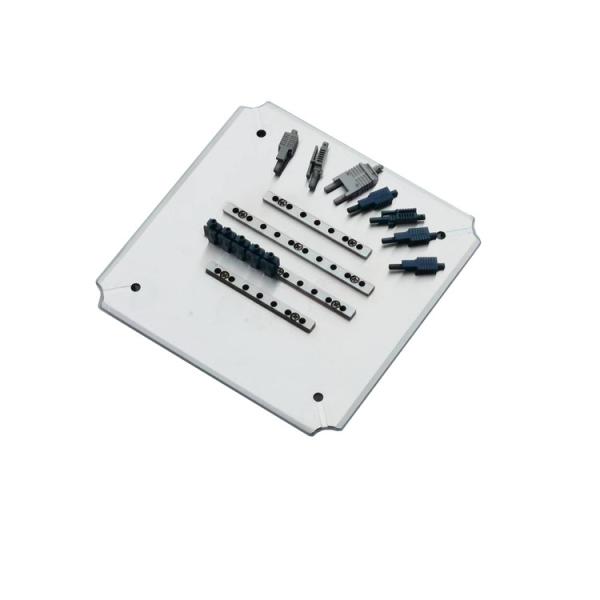

HFBR-4516Z connector polishing fixture
Features

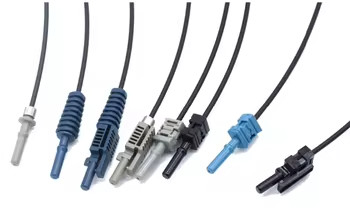

1. Designed for Avago HFBR 4506Z 4516Z & HFBR 4501Z/HFBR 4511Z /HFBR-4503Z plastic optical fiber connectors. 2. Easy to change jigs, simple and flexible to operate. 3. High efficiency, polishing Max 36 connectors in one cycle.The first pass yield for end face quality reach 98%～100% 4. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), 5. The accessories on the fixture can be replaced, Greatly extend the service life. 6 .Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life. This fiber polishing fixture can be designed with the jig of HFBR-4501Z / HFBR-4503Z / 4506z / 4516z, etc, and also according to the customer request.

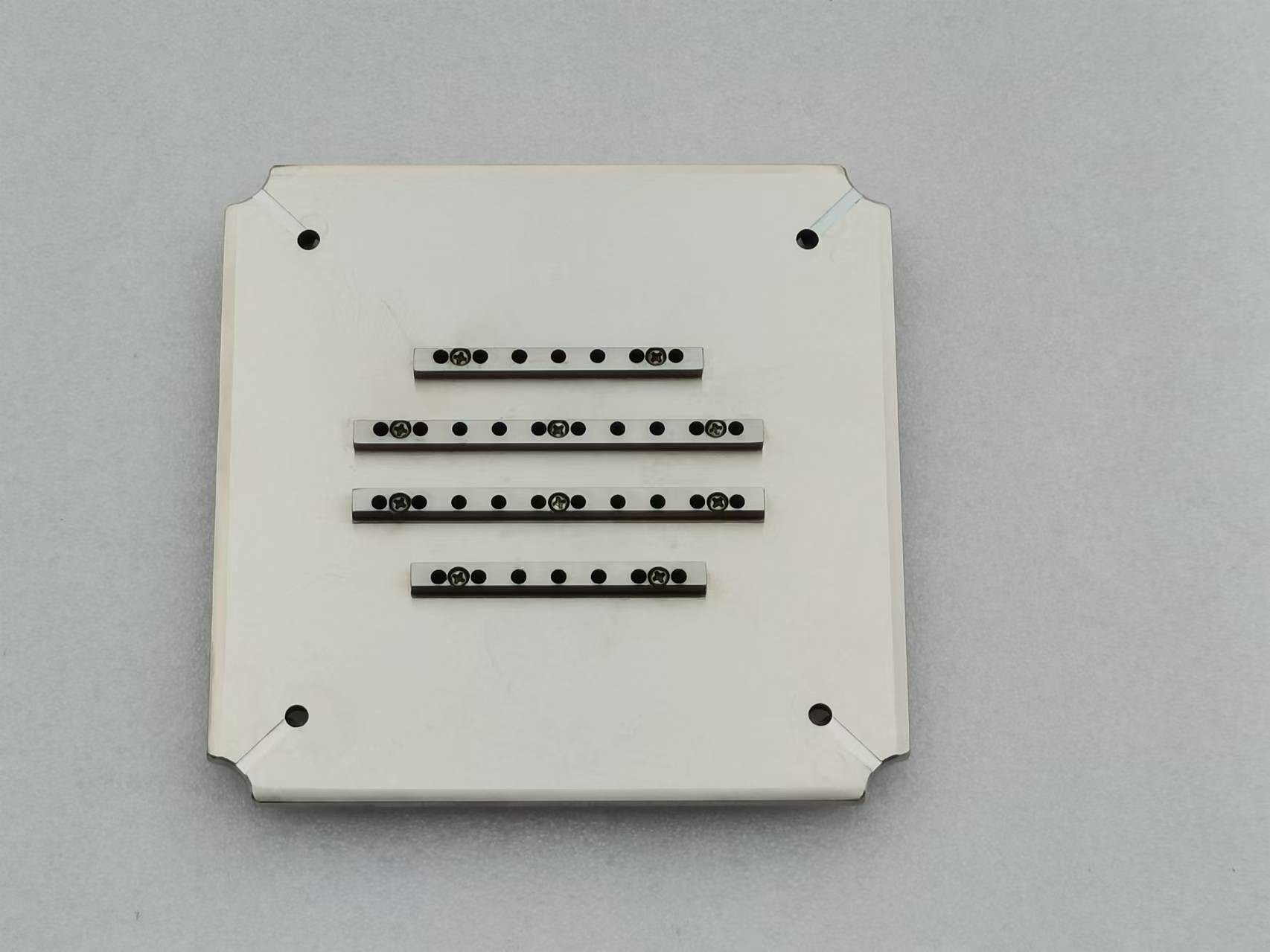

Hfbr-4516z connector polishing Jig
Specification:
| 1. Product Name | plastic optical fiber patch cord polishing fixture |
| 2. Model | Avago HFBR 4506Z 4516Z / HFBR 4501Z / HFBR 4511Z / HFBR-4503Z |
| 3. Insertion loss | ≤2.3dB(connection loss excluded the cable) |
| 4. cable core | single core , double core |
| 4. Brand | Chuanglixun |
| 5. Wave length | 650nm |
| 6. Attenuation | ＜180dB/km |
| 7. Material | Hardened stainless steel S 136 |
| 8. Size | 174mm*174mm*26mm |
| 9. Net Weight / Gross Weight (kg) | 1.3 kgs / 1.5 kgs |
| 10. Suitable machines | CLX-02E polishing machine
Seikoh Giken SFP-550 polishing machine
The similar machines |
Packaging and delivery
Selling Units:
Single item
Single package size:
220*220*9 cm (length x width x height)
Single gross weight:
1.3 KG
Company profile:
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010.
Is an optical communications equipment company integrating research and development,
production, after-sales service and technical services.
We not only sell high-quality products and provide good after-sales service,
but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber patch cord, there are good solutions.
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies,
you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
|
|
